Chemical drums refer to large-capacity containers designed for the storage and transportation of chemical substances. They are typically made of polyethylene (PE) or polypropylene (PP) due to their excellent chemical resistance, high compression strength, and airtight sealing properties. These drums are widely used in industrial manufacturing, agriculture, chemical processing, and the coatings industry, serving as essential carriers for chemical logistics across the global supply chain.
Market Drivers: Industrialization Fuels Demand Growth
The global demand for liquid products in sectors such as chemical manufacturing, pharmaceuticals, and food processing continues to rise. This trend is particularly pronounced in emerging markets such as the Asia-Pacific and Latin America, where rapid industrialization and agricultural development are driving the need for large-capacity chemical storage and transportation solutions.
According to Grand View Research, the global industrial drum market is projected to reach USD 20.6 billion by 2030. Within this, the industrial plastic drum segment is expected to grow at a compound annual growth rate (CAGR) of 5.3% during the forecast period.
Three Core Drivers of Global Growth
- Expansion of the Chemical Industry: The scaling of fine chemicals, petrochemicals, and agrochemical sectors directly increases the demand for chemical drums.
- Packaging and Transport Efficiency: Chemical drums offer a safe and efficient method for liquid transportation, meeting the global supply chain’s stringent requirements for corrosion-resistant and high-strength containers.
- Environmental Policy and Recycling Mandates: Growing global concern over plastic pollution is accelerating the development of the recycling market. The closed-loop reuse of chemical drums has become a focal point of environmental regulations and circular economy strategies.
Regional Recycling Rate Estimates
- Europe: A mature and leading market, with estimated recycling rates between 50% and 60%.
- North America & Asia: Current recycling rates are approximately 30% to 40%, but are expected to increase significantly as recycling technologies improve and regulatory frameworks are strengthened.
Challenges in Chemical Drum Recycling
- Contamination Issues: Chemical drums are commonly used to store or transport toxic chemicals, solvents, and other hazardous substances. Residual chemicals left inside the drums can significantly disrupt the recycling process. To ensure safety and environmental compliance, thorough decontamination and cleaning is essential before further processing.
- Lack of Standardization: Due to varying manufacturing standards across regions, recycling facilities are required to handle drums with diverse specifications and material compositions. This lack of standardization increases the complexity and operational cost of the recycling process.
- High Operational Costs: The recycling of chemical drums is technically demanding, involving multiple steps such as cleaning, chemical residue removal, and material sorting. Processing must be carried out in licensed facilities equipped to handle hazardous waste, which leads to significantly higher costs—often unaffordable for smaller recycling enterprises.
Shredding Recycling Solution & configurations for Chemical Drums
Streamline Eco Tech offers a dedicated chemical drum shredding and recycling line designed specifically for end-of-life industrial containers. The system integrates all critical stages of the recycling process, including shredding, washing, dewatering, and material collection.
The main equipment includes:
| Shredder | Crusher | Hot Washing Machine | Friction Washer | Separation and Sedimentation Tank | Centrifugal Dewatering Machine | Air Classifier System |
All components are connected via automated conveyor systems, enabling fully automated, one-button start-stop control and continuous operation.
This solution is compatible with PE/PP chemical drums as well as other rigid plastic waste such as HDPE, PP, and ABS. Its modular design supports scalable production capacities ranging from 500 to 5000 kg/h, allowing flexible upgrades based on processing demands.
Core Processing Equipment and Their Functions

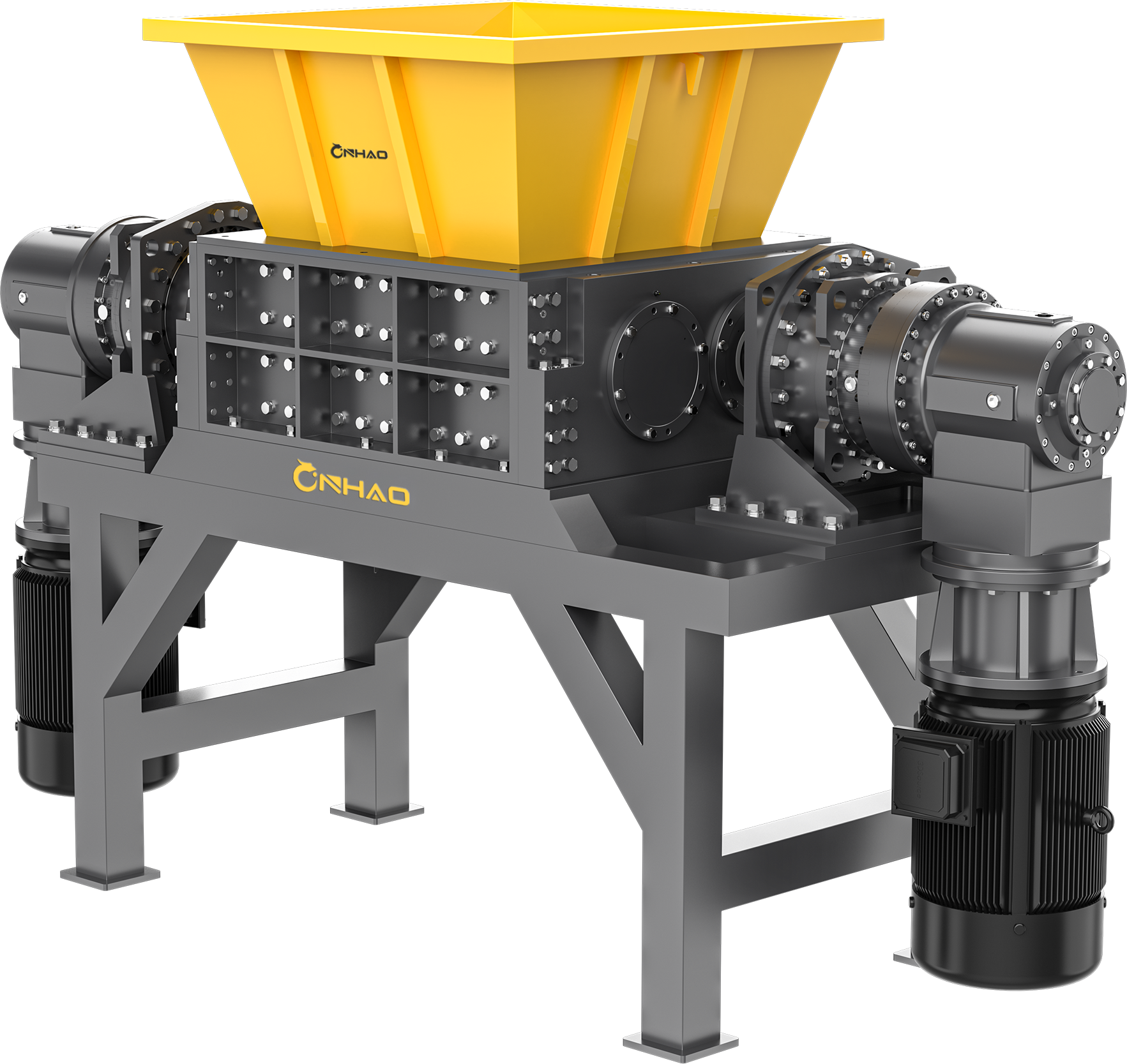

- Primary Shredding Unit: Double Shaft Shredder– D Series
Used for coarse shredding of large blue drums, reducing volume (Width 40–60 mm fragments), and resolving the difficulty of handling hollow containers. This step prepares the material for fine shredding.
Technical Features:
Low-speed, high-torque design (e.g., 40 rpm), combined with hydraulic pusher for forced feeding to enhance efficiency.
D2 alloy steel blades for long service life and low maintenance; suitable for mixed loads of metal and rigid plastics.
Sealed bearing housings, water- and dust-resistant, to prevent external contamination.
- Secondary Shredding Unit: Crusher – C Series
Further reduces the size of pre-shredded material to 2–5 cm, increasing surface area to facilitate penetration of cleaning agents for deeper decontamination.
Technical Features:
Integrated molded chamber and four-blade rotor structure minimize powder los and improve uniformity of shredded output.
- Multi-Stage Washing System:
Rinsing Tank (Pre-Wash): Removes surface dust and loose contaminants; water flow helps separate labels, sand, and debris.
Friction Washer: High-speed mechanical agitation scrapes off chemical residues adhered to the inner drum surface.
Rinsing Tank (Final Wash): Circulating cold-water rinse to remove detergent residues and dissolved contaminants thoroughly.
Hot Washer (304/316L stainless steel): Heats fragments and applies sodium hydroxide solution (3–8% concentration). Water temperature adjustable to 70–90°C to enhance detergent effectiveness.
- Dewatering & Drying Unit: High-Speed Centrifugal Dryer
Operating speed: Up to 2300 rpm
Moisture removal rate: ≥98%
- Air Separation Unit: Pneumatic Sorting System
Uses variable-frequency fans to adjust air speed for material density differentiation. Efficiently separates PE flakes from labels, improving purity.
- Intelligent Control System: Siemens PLC + Touchscreen Interface
Real-time monitoring of load, temperature, and rotational speed with automatic shutdown or reverse protection on fault detection.
Video surveillance of key process nodes minimizes manual intervention and improves operational safety.
Performance-Enhancing Optional Configurations
- Sorting Equipment
Color Sorter / Air Separator: Sorts shredded flakes by color or density, further improving recycled pellet purity.
- Surveillance System
Real-time video monitoring of critical equipment and high-risk zones, enhancing process visibility and enabling rapid incident response and traceability.
- Pipeline Hot Air Drying System
Uses 170°C hot air to convey flakes and reduce final moisture content to <1%, meeting the requirements for downstream pelletizing.
- Wastewater Treatment Unit
Combination of sedimentation tank and chemical neutralization system for treating alkaline or oily wastewater, enabling water recycling.
- Safety Protection Facilities
Enclosed washing tanks + exhaust outlets to prevent emission of hazardous vapors.
Maintenance platforms and safety stairways to ensure operator safety during inspection and servicing.
Explosion-proof motors + static eliminators to mitigate risks from flammable solvent residues inside drums.
Given the strong corrosiveness of sodium hydroxide, the system includes automatic chemical dosing, protective gear, and emergency eyewash stations.
- Production Capacity Optimization
Hydraulic feeding units + conveyors with variable-frequency speed regulation, allowing real-time adjustment to match different throughput requirements.
Future Outlook: Green Transition & Intelligent Integration
In response to mounting global pressure on plastic pollution control and the growing demand for green industrial transformation, the recycling of large blue chemical drums is evolving from traditional recovery methods toward intelligent and integrated system solutions.
An efficient and fully automated recycling line not only improves resource recovery efficiency, but also establishes a solid foundation for the extension of the recycled materials value chain. With continuous advancement in policy support and technological innovation, the chemical drum recycling sector is expected to enter a new phase of rapid development and opportunity.
