Home / Products / Plastic Crusher – C Series
Product

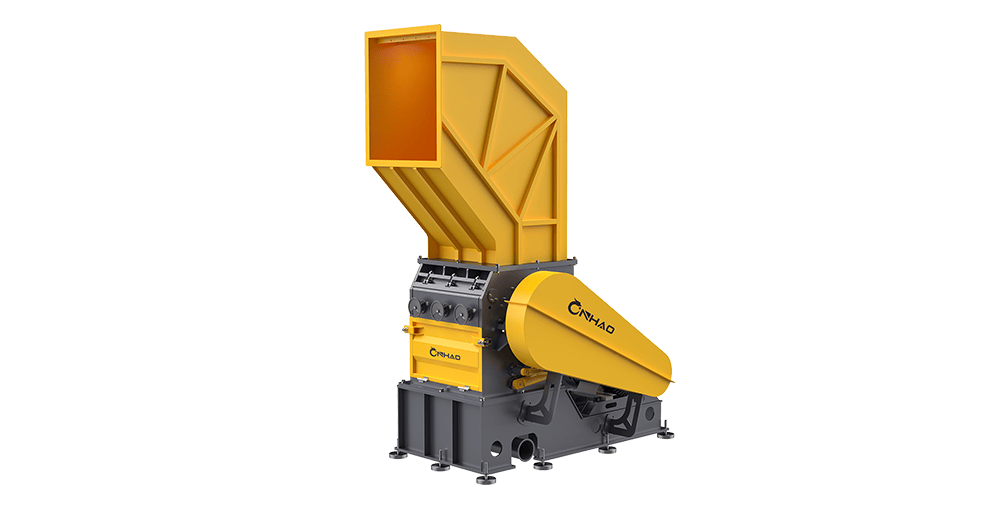

Plastic Crusher – C Series
Uniform granulation for washing, reprocessing and pelletizing lines.
Uniform granules
Screen‑controlled granule size for consistent downstream.
Efficient cutting
High‑speed rotor for stable output and productivity.
Maintenance friendly
Easy blade adjustment and servicing.
Typical reply within 24–48 hours. Share material, throughput target, output size and destination country.
Engineered to stay stable under load
Not a “spec sheet machine”. We focus on real feedstock variability, stable throughput and maintainability.

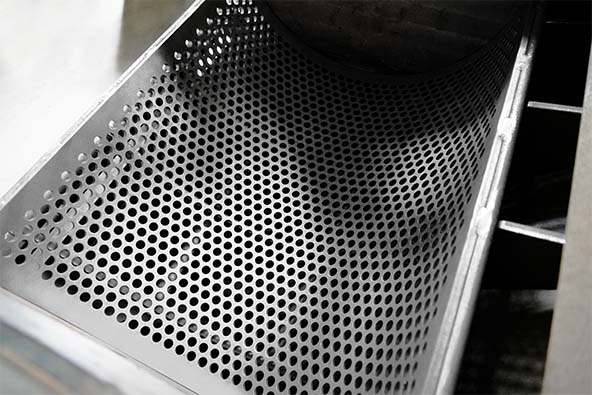

Screen‑controlled output
Choose screen size based on pelletizing/washing needs.

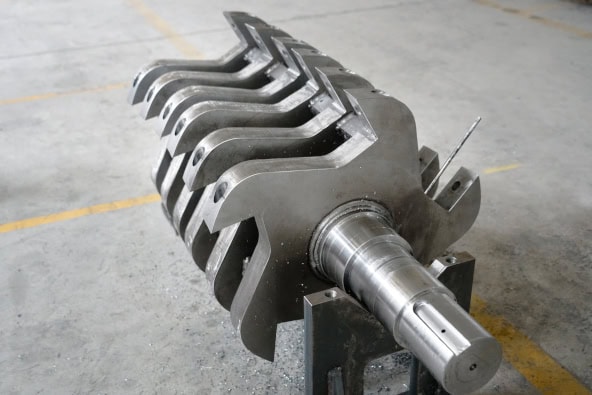

Robust rotor
Designed for continuous workshop operation.
Noise/dust ready
Optional enclosure and dust extraction interfaces.
Line integration
Works with conveyors, hoppers and bagging systems.
Built for real feedstock variety
Pick common materials below — we can tune knives, screens and options to match.
Rigid plastics
PP/PE/ABS rigid parts and containers.
Sprues
Injection molding sprues and runners.
Pipes & profiles
Secondary crushing for reprocessing.
Regrind
Sizing for washing and pelletizing.
Mixed plastics
Configured knives/screens for mixed feedstock.
Workshop recycling
On‑site recycling and size reduction.
Pick a model, copy the table
Below is a clean specs table. If you need a datasheet PDF, request a quote and we’ll send it.
| Model | C600/450 | C800/600 | C1000/600 | C1200/600 | C1400/600 | C1200/800 |
| Rotor Diameter (mm) | φ450 | φ600 | φ600 | φ600 | φ600 | φ800 |
| Rotor width (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1200 |
| Spindle speed(rpm) | 580 | 520 | 520 | 520 | 520 | 420 |
| Counter knife qty (pcs) | 2 | 2 | 2/3 | 2/3 | 2/3 | 2/3 |
| Rotor knife qty (pcs) | 3 | 3/5 | 5/7 | 5/7 | 5/7 | 5/7/9 |
| Motor Power (kW) | 30 | 37/55 | 55/75 | 75/90 | 110/132 | 110/132 |
| Hydraulic drive capacity (kW) | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 |
| Lnlen size | 600×580 | 800×930 | 1000×930 | 1200×1000 | 1400×1000 | 1200×1100 |
| Screen opening(mm) | >6 | >6 | >6 | >6 | >10 | >10 |
| L×W×HDimension(mm) | 1800×1250×2200 | 2200×1660×3420 | 2300×1860×3420 | 2300×2180×3520 | 2300×2400×3520 | 2300×2200×3720 |
| Weight (kg) | 2000 | 3700 | 4300 | 5200 | 6500 | 8000 |
Configure around your site constraints
We configure the machine around your material, layout, power and compliance constraints.
Screen sizes
- Granule size selection
- Quick‑change screens (optional)
Feeding
- Hopper / conveyor feeding
- Sound enclosure feeding interfaces
Discharge
- Bagging interface
- Conveyor discharge
Controls
- Motor protection
- Load monitoring (optional)
Blades
- Blade material options
- Spare blade sets
Reduce project risk
We support selection, delivery and long‑term operation.
Lead time
We confirm lead time after your configuration and destination country.
Installation
Installation guidance, commissioning and operator training support.
Training
Remote + on‑site training options for operators and maintenance team.
Spare parts
Knife sets, screens (if applicable) and critical spares supply.
A real project pattern
Material
Mixed plastics (rigid + film)
Target
Stable size reduction for washing line feeding
Configuration
Plastic Crusher – C Series + conveyor + screen selection
Result
More stable downstream throughput and easier operation
Common questions
How do I choose the right model?
Share your feedstock, throughput target, output size and site constraints. We will recommend a feasible model range and configuration.
Can output size be controlled?
Yes. Depending on the machine type, output is controlled by screen size and knife configuration, or by cutter profile and downstream secondary crushing.
What affects throughput the most?
Material type, feeding method, required output size, knife design and operating hours. Provide details and we will estimate a realistic range.
Do you support overseas delivery?
Yes. We ship globally and support overseas projects with remote and on‑site service depending on schedule and location.
What information do you need for a quote?
Material, throughput, output size, contamination/moisture, power/space constraints and destination country.
Request a quote in 2 minutes
Send material details, throughput target and output size — we’ll respond with a configuration recommendation.
