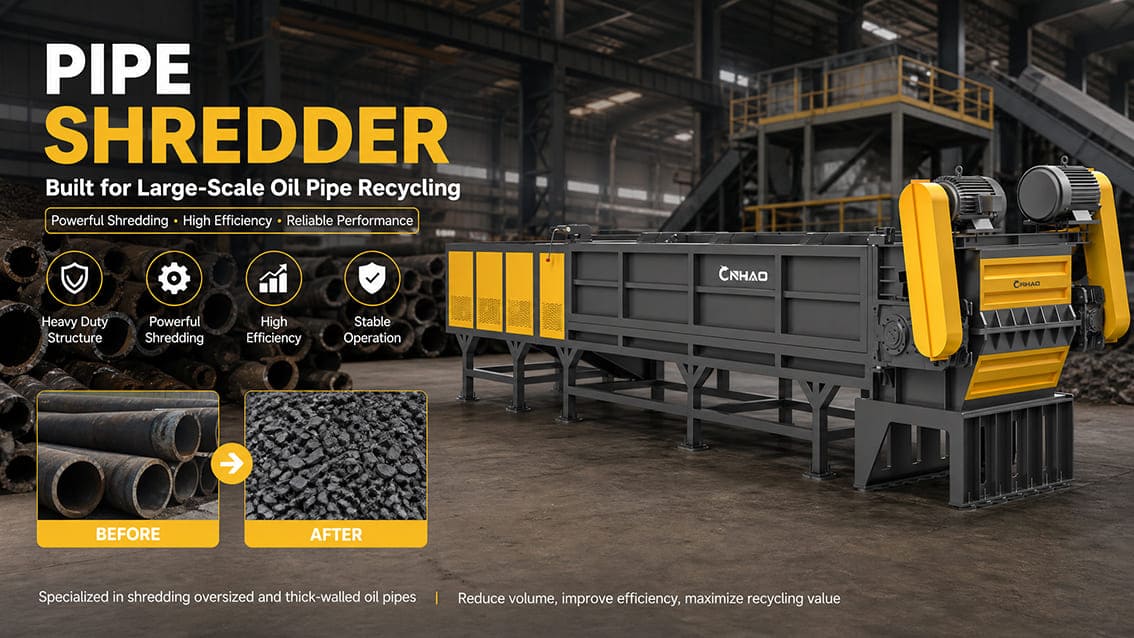

What Is a Pipe Shredder?
A Pipe Shredder is a recycling machine designed to reduce long and bulky plastic pipes into smaller pieces before granulation, washing, or reprocessing.
The P Series Pipe Shredder is specifically engineered for oversized plastic pipes that are difficult to process using conventional shredders. It is commonly used for HDPE, PVC, PP, PPR, PE, and large industrial pipe waste.
Why Are Large Plastic Pipes Difficult to Recycle?
Large-diameter pipes present unique challenges during recycling.
Common Challenges
- Lengths exceeding 3–6 meters
- Diameters from 200 mm to over 1,200 mm
- Thick wall structures
- High material toughness
- Difficult manual handling and feeding
Without proper pre-shredding, these materials can overload downstream crushers and increase operational costs.
How Does the P Series Pipe Shredder Work?
The P Series Pipe Shredder is designed for continuous feeding of long pipes without extensive pre-cutting.
Process Flow
- Pipe Loading
- Hydraulic Feeding
- Pipe Shredding
- Size Reduction
- Conveyor Discharge
- Secondary Crushing or Granulation
Key Components
| Component | Function |
| Hydraulic Ram | Pushes pipes into the rotor |
| High-Torque Rotor | Performs primary shredding |
| Fixed & Rotary Knives | Material cutting |
| Screen System | Controls output size |
| PLC Control System | Automated operation |
Typical Materials Processed
The P Series Pipe Shredder is suitable for:
- HDPE pipes
- PVC pipes
- PP pipes
- PPR pipes
- PE water pipes
- Corrugated pipes
- Plastic pipe production scrap
- Municipal pipe waste
Technical Parameters
Actual specifications vary according to project requirements.
| Parameter | Typical Range |
| Pipe Diameter | 200–1,200 mm |
| Rotor Diameter | 500–800 mm |
| Motor Power | 55–160 kW |
| Throughput | 500–5,000 kg/h |
| Output Size | 40–120 mm |
Benefits of Using a Pipe Shredder
1. Handles Oversized Pipes
The machine can process large pipes that cannot be fed directly into standard crushers.
2. Reduces Transportation and Storage Costs
Shredded material occupies significantly less volume than whole pipes.
3. Improves Downstream Efficiency
Uniform shredded pieces improve feeding consistency for crushers, washing lines, and extrusion systems.
4. Protects Secondary Equipment
Pre-shredding reduces impact loads and minimizes wear on granulators and crushers.
5. Supports Circular Economy Goals
Recovered plastic materials can be reintroduced into manufacturing applications.
Pipe Shredder vs Traditional Crusher
| Item | Pipe Shredder | Traditional Crusher |
| Long Pipe Processing | Excellent | Limited |
| Large Diameter Handling | Excellent | Difficult |
| Feeding Stability | High | Medium |
| Energy Efficiency | High | Medium |
| Equipment Protection | High | Low |
Common Problems in Pipe Recycling
Problem 1: Feeding Large Pipes
Oversized pipes may not fit conventional crusher inlets.
Problem 2: Rotor Wear
Contaminated pipes may contain sand, stones, or metal particles.
Problem 3: Low Throughput
Manual pipe cutting increases labor and processing time.
Solutions
Use Hydraulic Feeding Systems
Hydraulic feeding improves safety and feeding consistency.
Install Metal Detection Equipment
Metal detectors help prevent damage from embedded metal contaminants.
Optimize Shredding and Crushing Stages
Combining shredders with downstream crushers improves overall plant efficiency.
Frequently Asked Questions
Can the P Series shred HDPE pipes?
Yes. HDPE pressure pipes are among the most common applications.
Can it process PVC pipes?
Yes. Both rigid PVC and large-diameter PVC pipes can be shredded.
Is pre-cutting required?
In many cases, long pipes can be fed directly into the machine, reducing labor requirements.
What is the typical output size?
Most systems produce shredded pieces between 40–120 mm before secondary processing.
Streamline Eco Tech Solution
Streamline Eco Tech provides recycling solutions for plastic pipes, rigid plastics, PET bottles, films, woven bags, and industrial plastic waste.
Our pipe recycling systems integrate Pipe Shredders, conveyors, metal separation equipment, crushers, washing systems, and pelletizing lines to improve recycling efficiency and material recovery while supporting circular economy objectives.
