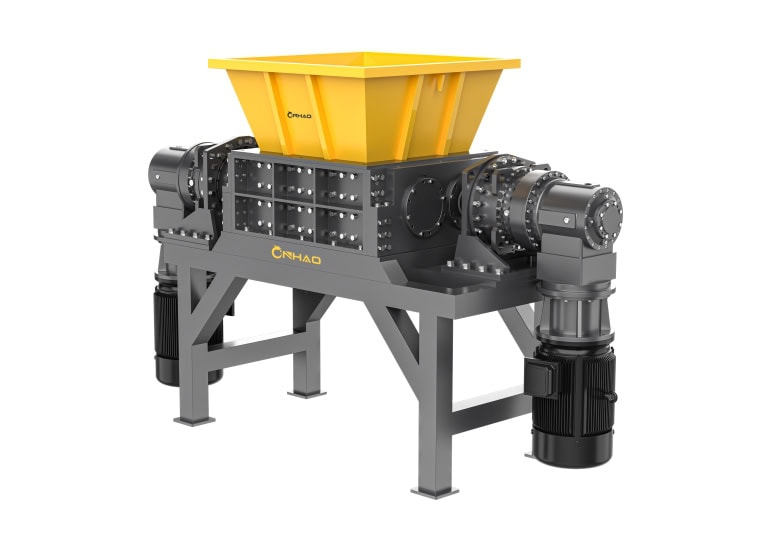

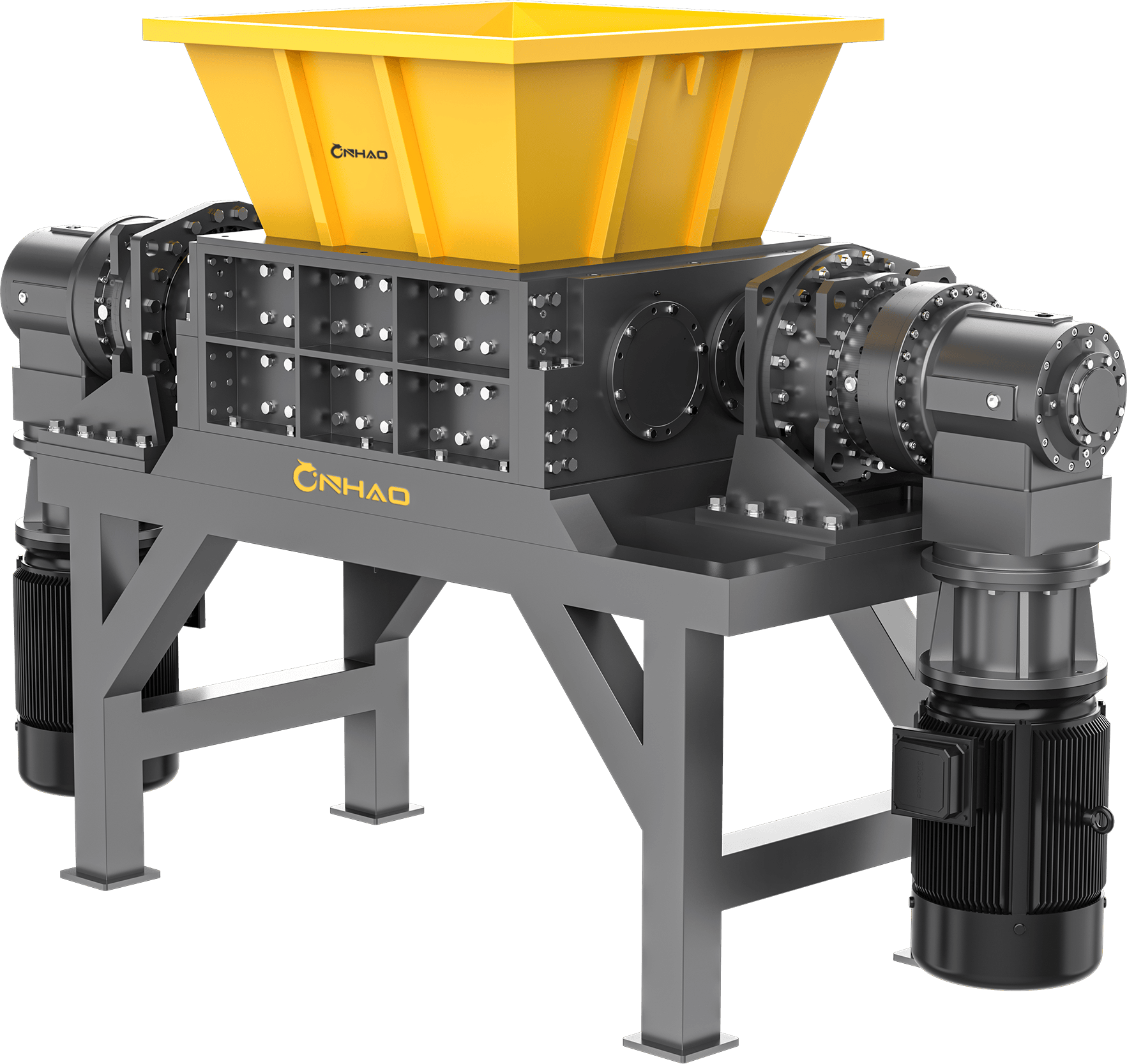

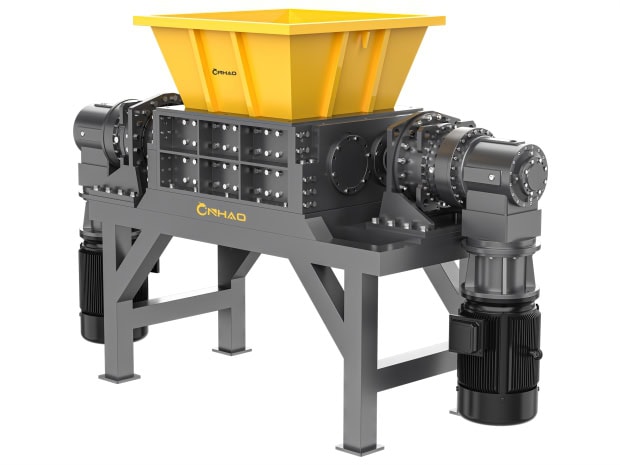

Double Shaft Shredder – D Series
High‑torque primary shredding for bulky and tough materials.
Built for bulky feedstock
Handles large, tough, mixed materials with stable torque.

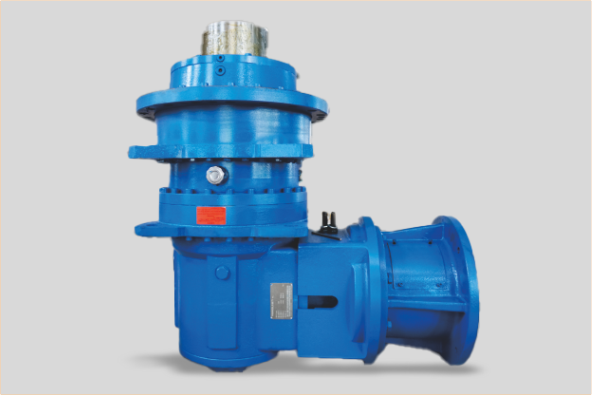

Simple, rugged drive train
Heavy‑duty drivetrain designed for harsh duty cycles.
Anti‑jamming control
Auto‑reverse logic to reduce downtime under overload.
Typical reply within 24–48 hours. Share material, throughput target, output size and destination country.
Engineered to stay stable under load
Not a “spec sheet machine”. We focus on real feedstock variability, stable throughput and maintainability.
High‑torque shredding
Designed for primary shredding where force matters.

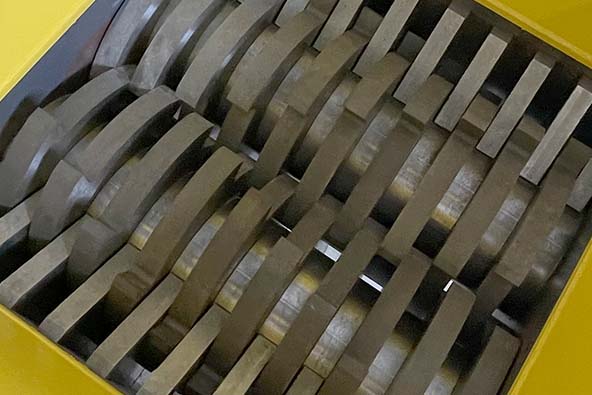

Cutter profile selection
Choose cutter shapes for your material and target output.
Overload protection
Torque limiting + reversing logic to protect drivetrain.
Easy integration
Works with conveyors, feeding hoppers and downstream lines.
Built for real feedstock variety
Pick common materials below — we can tune knives, screens and options to match.
Plastic lumps
Purging, thick parts, bulky rigid plastics.
Tyres
Primary shredding to prepare for granulation.
Industrial waste
Mixed industrial waste and bulky scraps.
MSW / RDF
Pre‑processing for RDF and sorting lines.
Light metals
Light scrap for size reduction and sorting.
Wood & pallets
Bulky wood waste for logistics and downstream processing.
Pick a model, copy the table
Below is a clean specs table. If you need a datasheet PDF, request a quote and we’ll send it.
| Model | D800 | D1000 | D1200 | D1400 | D1600 |
| Blade Diameter (mm) | φ420 | φ420 | φ510 | φ510 | φ510 |
| Blade thickness (mm) | 40 | 45 | 50 | 50 | 80 |
| knife qty (pcs) | 20 | 22 | 24 | 28 | 20 |
| Rotor speed(rpm) | 14-23 | 14-23 | 10-18 | 10-18 | 8-15 |
| Motor Power (kW) | 30×2 | 37×2 | 45×2 | 55×2 | 75×2 |
| A×B Crushing chamber(mm) | 815×780 | 1015×780 | 1220×1000 | 1420×1000 | 1620×1000 |

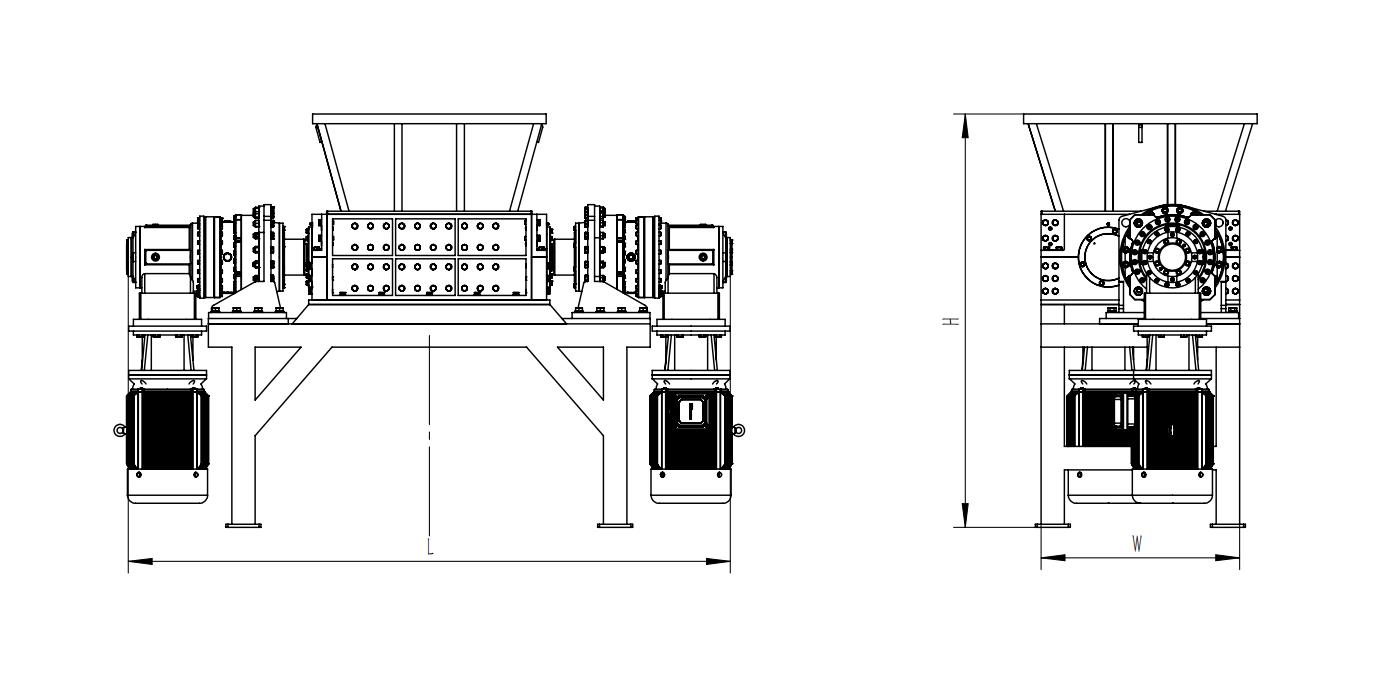

| L×W×HDimension(mm) | 3100×1020×2000 | 3500×1020×2000 | 4500×2300×2300 | 5000×2300×2300 | 6200×2300×2500 |
| Weight (kg) | 4500 | 8000 | 10500 | 12000 | 17000 |
Configure around your site constraints
We configure the machine around your material, layout, power and compliance constraints.
Cutter profiles
- Different cutter thickness and profiles
- Wear‑resistant options
Feeding
- Infeed conveyor / hopper
- Hydraulic / mechanical feeding aids
Discharge
- Conveyor discharge
- Magnetic separation interface (optional)
Controls
- PLC with auto‑reverse
- Load monitoring and alarms
Safety
- Emergency stops and interlocks
- Guarding and safety standards support
Reduce project risk
We support selection, delivery and long‑term operation.
Lead time
We confirm lead time after your configuration and destination country.
Installation
Installation guidance, commissioning and operator training support.
Training
Remote + on‑site training options for operators and maintenance team.
Spare parts
Knife sets, screens (if applicable) and critical spares supply.
A real project pattern
Material
Mixed plastics (rigid + film)
Target
Stable size reduction for washing line feeding
Configuration
Double Shaft Shredder – D Series + conveyor + screen selection
Result
More stable downstream throughput and easier operation
Common questions
How do I choose the right model?
Share your feedstock, throughput target, output size and site constraints. We will recommend a feasible model range and configuration.
Can output size be controlled?
Yes. Depending on the machine type, output is controlled by screen size and knife configuration, or by cutter profile and downstream secondary crushing.
What affects throughput the most?
Material type, feeding method, required output size, knife design and operating hours. Provide details and we will estimate a realistic range.
Do you support overseas delivery?
Yes. We ship globally and support overseas projects with remote and on‑site service depending on schedule and location.
What information do you need for a quote?
Material, throughput, output size, contamination/moisture, power/space constraints and destination country.
