O que é um triturador de eixo duplo?

por | 1 de junho de 2026 | Trituradores

Quick Answer

A double shaft shredder is an industrial size reduction machine that uses two counter-rotating shafts equipped with cutting blades to tear, shear, and shred various materials. It is widely used in plastic recycling, tire recycling, municipal solid waste (MSW), electronic waste, RDF production, and industrial waste treatment. Compared with conventional crushers, double shaft shredders provide higher torque, lower operating speed, and better handling of bulky or difficult materials.

Introduction

As global recycling and waste management industries continue to expand, efficient size reduction equipment has become increasingly important.

Among the various recycling machines available today, the double shaft shredder is one of the most widely used solutions for processing large-volume and high-strength waste materials.

Its ability to handle diverse feedstocks makes it a key component in modern recycling systems.

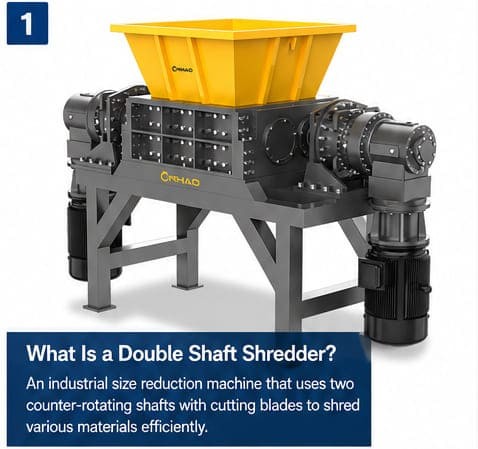

O que é um triturador de eixo duplo?

Definition

A double shaft shredder is a low-speed, high-torque shredding machine consisting of two parallel shafts fitted with interlocking cutting blades.

The machine reduces material size through:

  • Cutting
  • Shearing
  • Tearing
  • Trituração

Unlike high-speed granulators, double shaft shredders focus on primary size reduction and are designed to process tough, bulky, or contaminated materials.

    Typical Materials Processed

    Double shaft shredders are commonly used for:

    ✅ Industrial Waste                                ✅ Waste Paper

    ✅ Automobile Shells                            ✅ Construction Wood

    ✅ Large Plastic Products                    ✅ Plastic Films

    ✅ RDF Feedstock                                   ✅ Metal Drums

    ✅ Waste Household Appliances      ✅ Tires

    ✅ Municipal Solid Waste (MSW)

    For recycling applications, they are often installed before crushers, granulators, or washing systems.

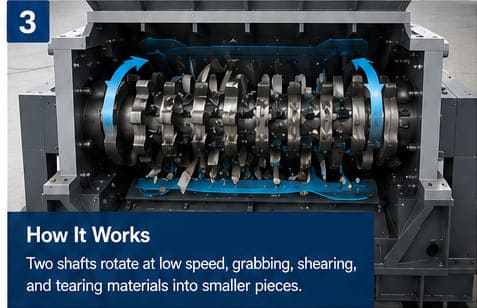

    How Does a Triturador de duplo eixo Work?

    Conclusion First

    A double shaft shredder works by using two slow-speed rotating shafts that pull material into the cutting chamber and reduce it through shearing and tearing action.

      Step-by-Step Process

      Step 1: Material Feeding

      Waste materials are fed into the hopper manually or by conveyor.

      Step 2: Material Capture

      The rotating blades grip the material and pull it into the cutting zone.

      Step 3: Shearing and Tearing

      The interlocking knives generate high torque to tear and shear the material into smaller pieces.

      Step 4: Discharge

      Processed material exits through the bottom of the shredding chamber.

      Step 5: Secondary Processing

      The shredded material may be sent to:

      • Trituradores
      • Granulators
      • Washing lines
      • RDF systems

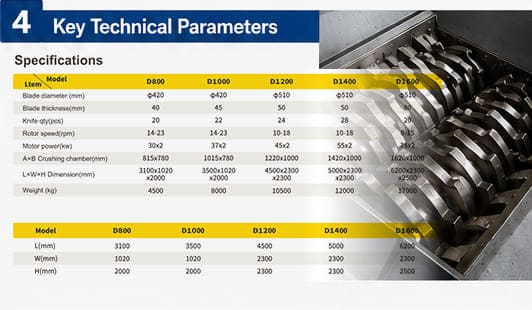

        Key Technical Parameters



        Actual specifications vary depending on material type and project requirements.



        Important Performance Indicators

        Torque

        High torque allows shredding of difficult materials such as tires and thick plastics.

        Throughput

        Determines production capacity and system efficiency.

        Blade Material

        Common blade materials include:

        • D2 tool steel
        • SKD11 steel
        • Alloy steel

        Tamanho da saída

        Can be adjusted through blade configuration and screen design.



        Benefits of Double Shaft Shredders

        1. High Torque Performance

        Suitable for processing bulky and hard materials.

        2. Wide Material Compatibility

        Can handle mixed waste streams and various recyclable materials.

        3. Low Dust Generation

        Low-speed operation minimizes dust emissions.

        4. Lower Noise Levels

        Operating speeds are significantly lower than conventional crushers.

        5. Improved Equipment Protection

        Automatic reverse systems help prevent overload and blade damage.

        6. Reduced Maintenance Costs

        Durable blades and low-speed operation extend machine life.





        Common Problems

        Blade Wear

        Continuous operation causes blade edges to become dull.

        Impact

        • Reduced efficiency
        • Aumento do consumo de energia



        Material Jamming

        Large or irregular materials may become trapped.

        Impact

        • Reduced throughput
        • Motor overload

        Bearing Failure

        Insufficient lubrication can cause premature bearing wear.

        Impact

        • Tempo de inatividade
        • Higher maintenance costs

        Overheating

        Excessive load may increase motor temperature.

        Impact

        • Reduced equipment lifespan

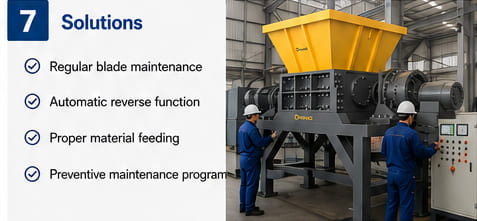

        Solutions

        Regular Blade Maintenance

        Inspect and sharpen blades periodically.

        Install Automatic Reverse Function

        Allows the machine to clear blockages automatically.

        Proper Material Feeding

        Avoid overloading the hopper.

        Preventive Maintenance Program

        Regular inspection of:

        • Bearings
        • Hydraulic systems
        • Gearboxes
        • Electrical components

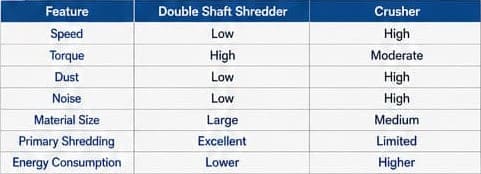

        Triturador de duplo eixo vs Triturador





        FAQ

        What is the main purpose of a double shaft shredder?

        It is used for primary size reduction of bulky waste materials before further recycling processes.

        What materials can a double shaft shredder process?

        Plastics, tires, wood, metals, electronic waste, RDF feedstock, and municipal solid waste.

        What is the difference between a single shaft and a double shaft shredder?

        Single shaft shredders use one rotor and a screen for controlled particle size, while double shaft shredders focus on high-torque primary shredding.

        How long do shredder blades last?

        Blade lifespan depends on material type and operating conditions, typically ranging from several months to several years.

        Is a double shaft shredder suitable for plastic recycling?

        Yes. It is widely used for shredding plastic films, PET bottles, HDPE containers, pipes, and industrial plastic waste.

        Can a double shaft shredder be used for RDF production?

        Yes. Double shaft shredders are commonly used as the primary shredding equipment in RDF processing lines.

        Conclusão

        A double shaft shredder is one of the most important machines in modern waste recycling and resource recovery systems. Its high torque, low-speed operation, and ability to process a wide range of materials make it an ideal solution for plastic recycling, RDF production, tire recycling, and industrial waste treatment.

        Selecting the appropriate machine based on material characteristics, throughput requirements, and downstream processing needs is essential for achieving optimal performance and operating efficiency.



        Streamline Eco Tech Solução

        Streamline Eco Tech provides advanced double shaft shredding solutions for plastic recycling, RDF production, municipal solid waste processing, and industrial waste management.

        Our shredders are engineered for high efficiency, reliable operation, and long service life, helping recycling facilities improve material recovery and reduce operational costs.
