Double Rotor Shredder – T
Applications:
Industrial waste paper, woven bags, PE films, used cables, wooden pallets, confidential document destruction, etc.
Welcome To CNHAO
Solid Waste Recycling Equipment Manufacturing System Solution Provider

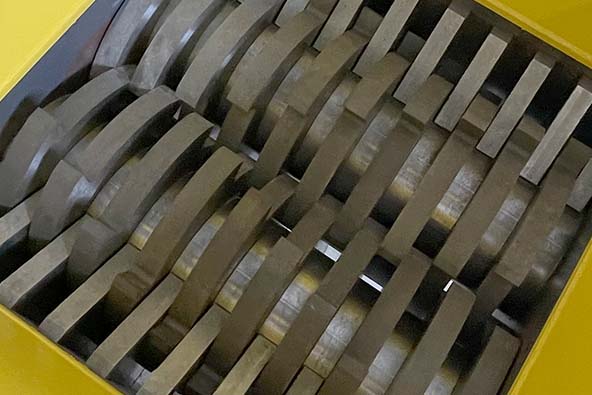

The double rolls design has a tearing effect on the crushed materials.
Knife Roller Surfacing Wear Resistant Layer
The angle of the blade can be changed and the blade can be used many times.
The Double Rotor Shredder (T Series) is a low-speed, high-torque machine, suitable for processing a variety of materials. Its unique rotor design ensures even blade distribution, reducing tool wear and dust emissions. It features replaceable mesh screens to control the output size. The rotors can be overlay-welded with wear-resistant materials, extending the equipment’s lifespan.
Specifications
| Model | T800 | T1000 | T1200 | T1600 |
| Rotor Diameter (mm) | φ420 | φ420 | φ420 | φ420 |
| Rotor width (mm) | 800 | 1000 | 1200 | 1600 |
| Spindle speed(rpm) | 38 | 38 | 38 | 38 |
| Counter knife qty (pcs) | 4 | 6 | 8 | 8 |
| Rotor knife qty (pcs) | 72 | 96 | 112 | 144 |
| Motor Power (kW) | 37×2 | 55×2 | 75×2 | 90×2 |
| Hydraulic drive capacity (kW) | 1.5 | 1.5 | 1.5 | 1.5 |
| Screen opening(mm) | >30 | >30 | >30 | >30 |
| L×W×HDimension(mm) | 3000×1750×2700 | 3200×1750×2700 | 3500×1750×2700 | 5000×1900×2700 |
| Weight (kg) | 5000 | 7000 | 9500 | 15000 |
Shredder
We offer a comprehensive range of high-quality shredders that can handle the most demanding tasks. Whether wood, plastic, paper or metal – we have the perfect pulverizer for your specific needs.
High-end equipment manufacturing
Provision of core equipment design and sales
System Solutions
Recycling of waste plastics, treatment of waste lithium batteries, recycling of domestic waste, industrial solid waste recycling, etc.
Need a tailored solution?
Solid Waste Recycling Equipment Manufacturing System Solution Provider
Reducer
The gear box adopts well-known brand gear box and rubber shock absorbing device, which can reduce the vibration generated during the tearing process, absorb the impact and protect the safety of the gear box and its power system.
Sieve Mesh
According to different needs, different specifications of screen mesh can be replaced. Screen replacement is hydraulically driven

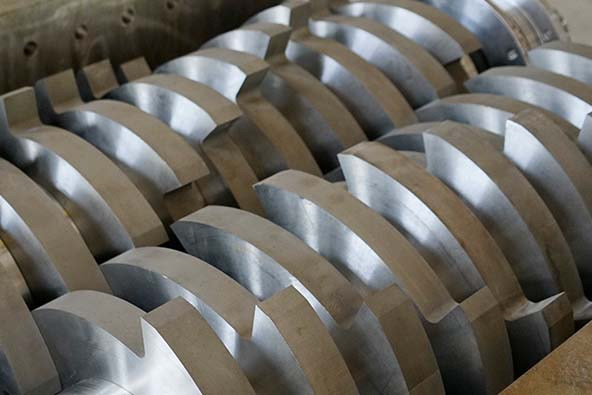

Rotor
Double rolls design, with tearing effect on crushed materials. Wear-resistant layer on knife rollers – suitable for handling materials mixed with hard materials, such as sand and gravel or glass fiber.
