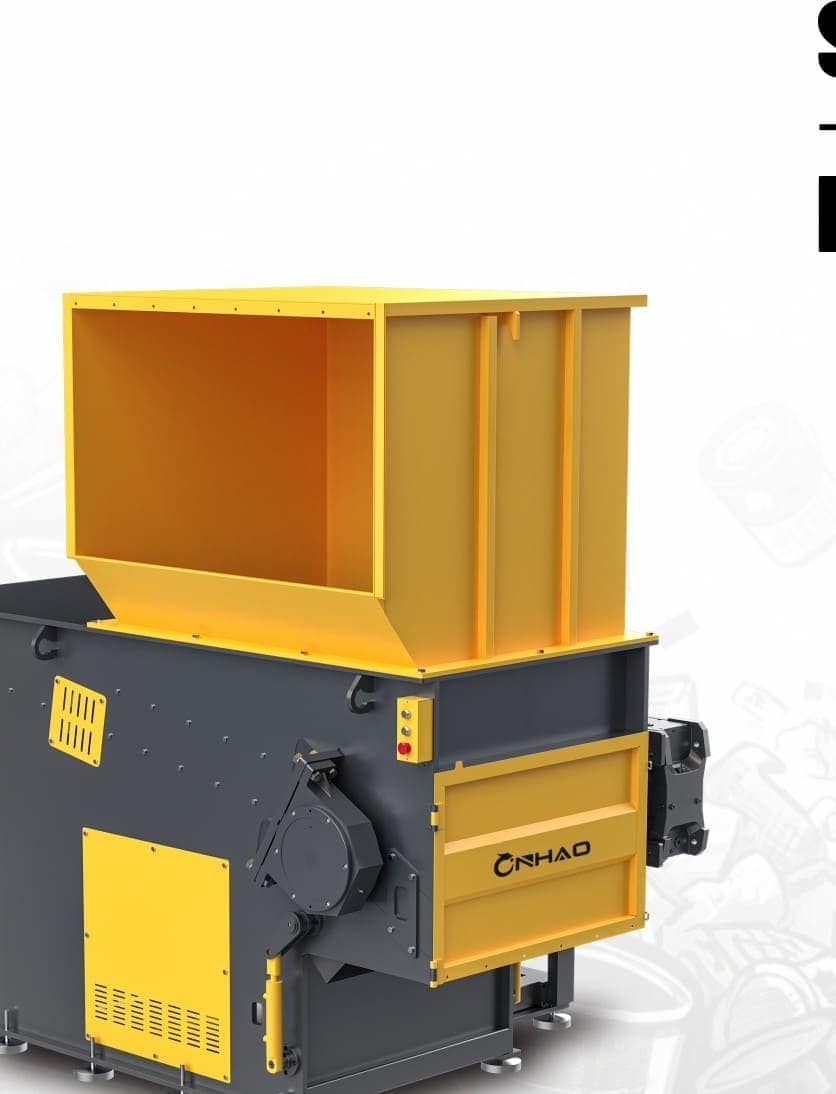

Single shaft shredder- S

Applications:

Plastic lumps, plastic sheets, PP woven bags, PET bottles, PE films, plastic pipes, waste paper, wires and cables, circuit boards, etc.

Contact

Welcome To CNHAO

Solid Waste Recycling Equipment Manufacturing System Solution Provider

Energy Efficient + Maximum Cutting Force & Productivity

Rotor Knives can be rotated and used on four edges before replacement.

Tested, Approved and Certified to the applicable CE safety standards

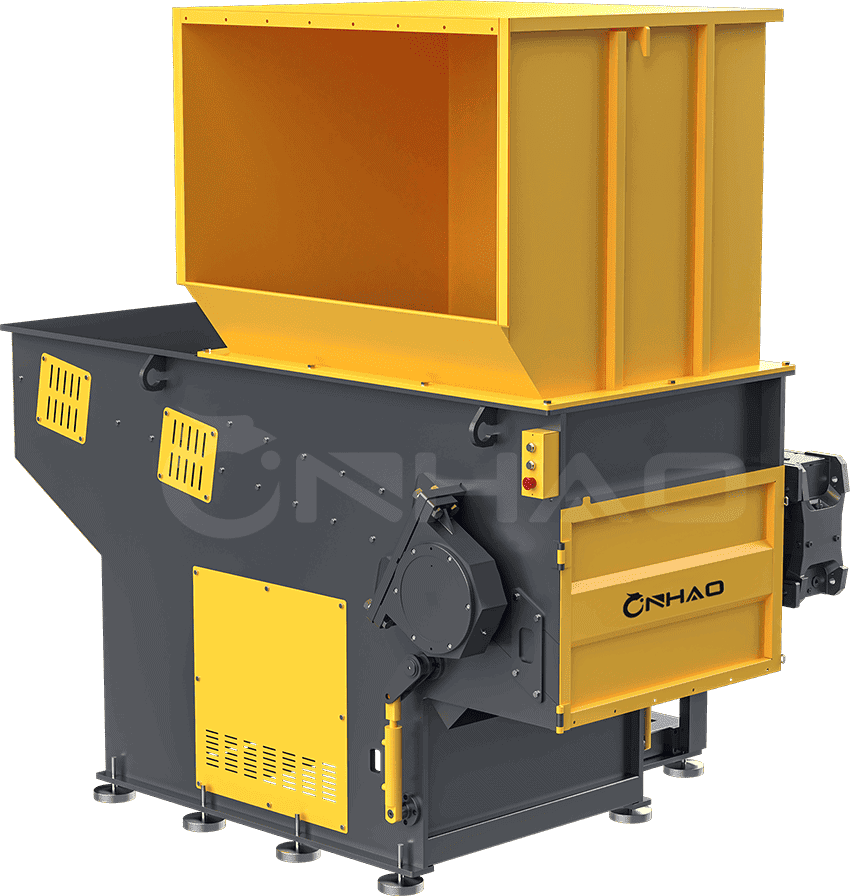

The Single Shaft Shredder (S Series) is a widely used, low­speed, high-torque crushing equipment. It adopts a brand­new design concept, achieving high output and low cost while enhancing maintenance convenience and safety. The machine body is made of special materials and advanced welding technology, ensuring a more robust structure and exceptional shredding capability.

 Specifications



 Model S600 S800 S1000 S1200   S1400  S1600  S1800
Rotor Diameter (mm) φ300 φ400/450 φ450 φ450 φ450/520 φ580/630 φ580/630
 Rotor width (mm) 600 820 1030 1230 1450 1650 1850
Spindle speed(rpm) 73 73 73 73 73 73 73
 Counter knife qty (pcs) 2 2 3 3 4 5 6
Rotor knife qty (pcs) 30/45 34/51 42/63 54/81/108 81/108/132 70/105/140 86/129/172
 Motor Power (kW) 22 37/45 55 75 90 75×2 90×2
Hydraulic drive capacity (kW) 5.5 5.5 5.5 5.5 7.5 7.5 7.5

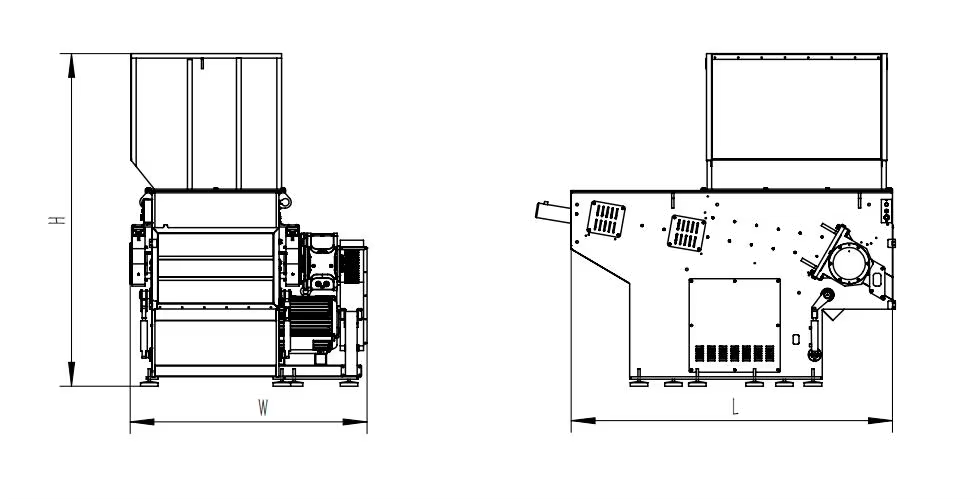

L×W×HDimension(mm) 1780×1400×1900 2400×1800×2500 2800×2000×2800 3350×2350×3000 3350×2600×3000 3800×3400×3600 4100×3400×3600
Weight (kg) 2800 3700 5000 6800 8300 11000 14000

Shredder

We offer a comprehensive range of high-quality shredders that can handle the most demanding tasks. Whether wood, plastic, paper or metal – we have the perfect pulverizer for your specific needs.

High-end equipment manufacturing

Provision of core equipment design and sales

System Solutions

Recycling of waste plastics, treatment of waste lithium batteries, recycling of domestic waste, industrial solid waste recycling, etc.

Learn More

Need a tailored solution?

Solid Waste Recycling Equipment Manufacturing System Solution Provider

Contact Us

Cutting Rotors

The movable blades are arranged in a V-shaped order. It can be replaced and rotated for multiple uses. Blade materials can be customized.The rotor surface can be overlay-welded with wear-resistant materials to extend the equipment’s service life.

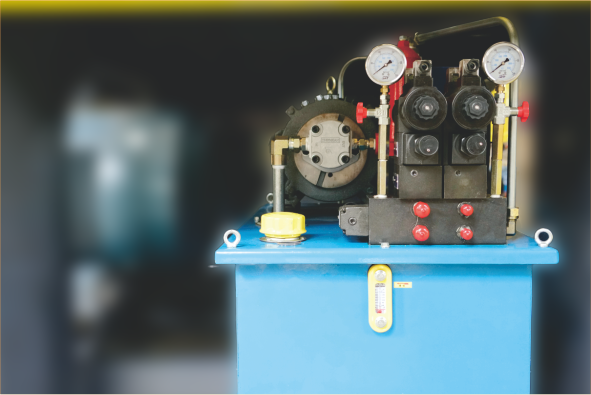

Hydraulic System

Features a dual-cylinder balanced feeding system with adjustable speed. The hydraulic system can adjust feeding and retraction speeds based on material properties.An air cooling system is integrated to maintain oil temperature, ensuring continuous operation.

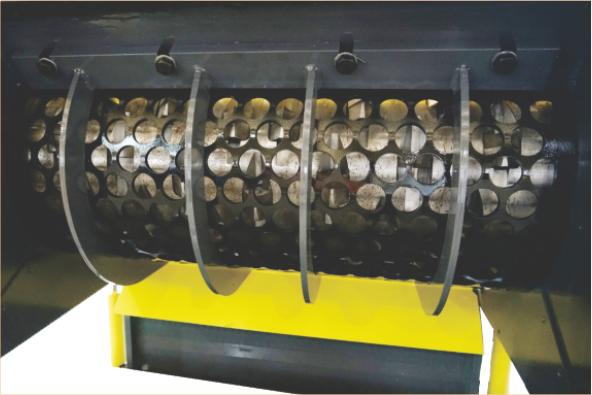

Sieve

Interchangeable sieves with varying sieve holes to meet diverse needs. Hydraulic-driven sieve replacement enhances safety and reduces labor requirements.

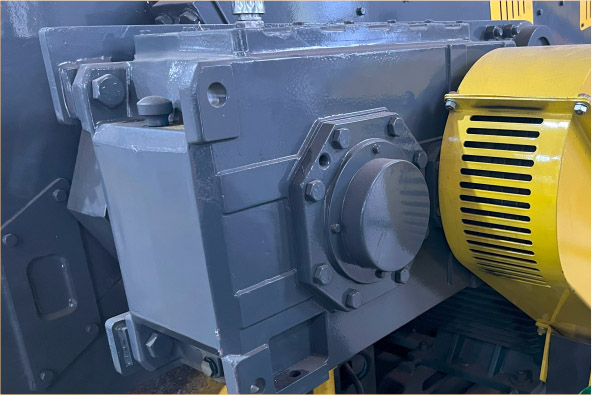

Reducer

Reducer with rubber damping to protect drive components
